Wiring a stepper motor look tricky sometimes, but you can do it easy with correct steps. Stepper motors is special as they move in little steps. That make them good for things like 3D printers or robots. If you wire it right, the motor will work better and last more longer. So, we show you how to wire a stepper motor properly and where get quality ones for your projects. Our company HANPOSE focus on giving good motors for whatever you need

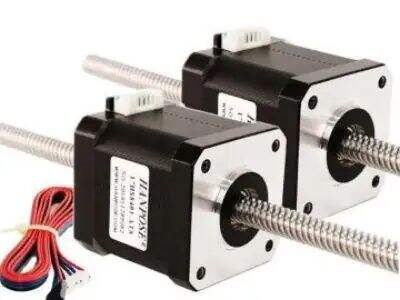

How to Wire a Stepper Motor Right for Best Results
Wiring a stepper motor good is key so it runs well. First off, you gotta know how many wires the motor have. Most have four, six or eight wires. Four-wire ones are easiest, so we start with those. Usually there two pairs of wires, each for a coil in the motor. To connect, get a power supply and controller. Hook one pair to one side of controller and other pair to the other side. Secure the connections tight, because loose wires can make motor skip steps or stop working
After hooking up, test the motor now. Keep power off first when testing. Turn on power slow and watch it. The motor should move steady without weird sounds. If you hear grinding or it not move right, check connections again. Sometimes swap wires help fix it
You might use a driver to control too. Drivers send signals right to motor, so you control speed and direction easier. For instance, connect to Arduino for more control on how motor acts. It like a remote for your stepper motor! Always follow instructions with motor and driver, since each type differ a bit
Finally, stepper motors get hot if run long time. If so, let cool before use again. That’s why proper wiring and care make motor perform great
How to Pick Stepper Motor Wiring for Your Project
Picking right wiring for stepper motor in project is big step to make sure it works. Stepper motor move in small steps, that help precision. When choose, think about power need first. Motors take different power, if not enough, it might not move or stop. Next, speed: some projects need slow careful turns, others fast. So pick one fit your speed
After, check wire count. Most four, six or eight. More wires give more control but harder. For beginners, four-wire easier. Last, see if motor fit space. Measure area and compare size. At HANPOSE, we have various motors for different needs, so find perfect fit
What to Know on Stepper Motor Wiring Diagrams
Wiring diagrams help a lot to connect stepper motor right. They show how link wires to project parts. Get these diagrams mean smooth work. First, look close at diagram for your motor. Wires have colors, diagram explain each. Like one for power, other for ground
Diagram also show connect to controller, which tell motor what do. Follow it careful, wrong connect make motor act odd or fail. If unsure, ask help or search online. At HANPOSE, we give clear diagrams with products to understand connections
Remember, each motor type have own diagram. Use the one with your motor. After connect, double check wires in right spots. This save trouble later
How to Check Quality When Wiring Stepper Motors for Bulk Sales
Wiring stepper motors for wholesale need quality control always. Quality control mean every motor sell is in top shape. Customers expect that. First, make checklist for wiring steps. Include things like check wire colors, connect right, test after
Next, set testing spot with tools to check motors. Run tests see if spin correct and respond. If not pass, fix or remove from line. At HANPOSE, we strict on control so motors wired good and work perfect before to customers
Tip, train team on process. Make sure all know checklist and testing. Training keep quality high. Last, keep records of all. If issues, look back what happen. Track help improve over time. Quality control key for happy customers with motors
