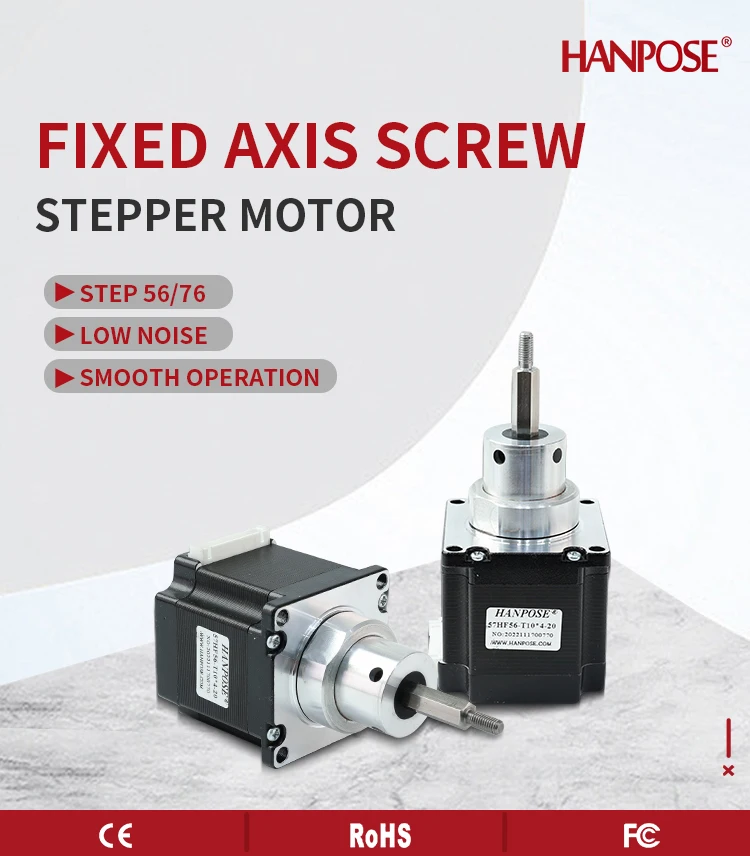

HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor
HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor

HANPOSE NEMA 23 57 Fixed Axis Screw Stepper Motor 57HF56-T10*4-20 56mm 2.8a 3.1v Linear Telescopic Push Rod Micro Stepper Motor

Inquiry
  • Overview
  • Recommended Products
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-1

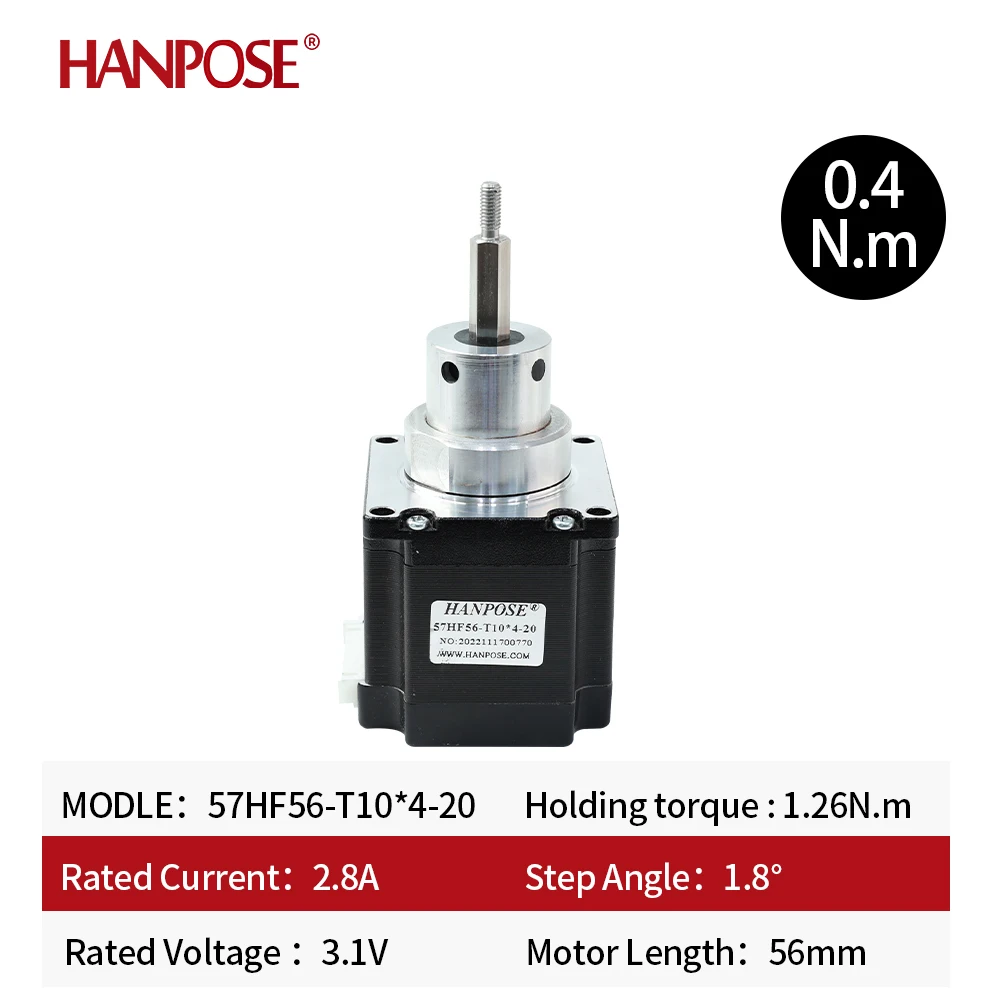

Products Description
Model
57HF56-T10*4-20
Motor length
56MM
Step angle
1.8°
Holding torque
1.26N.M
Rated Voltage
3.1V
Rated current
2.8A

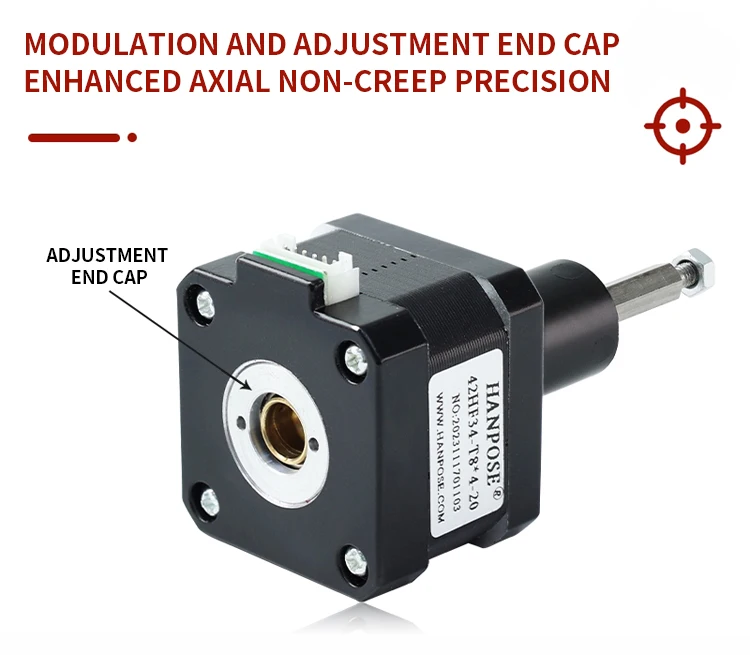

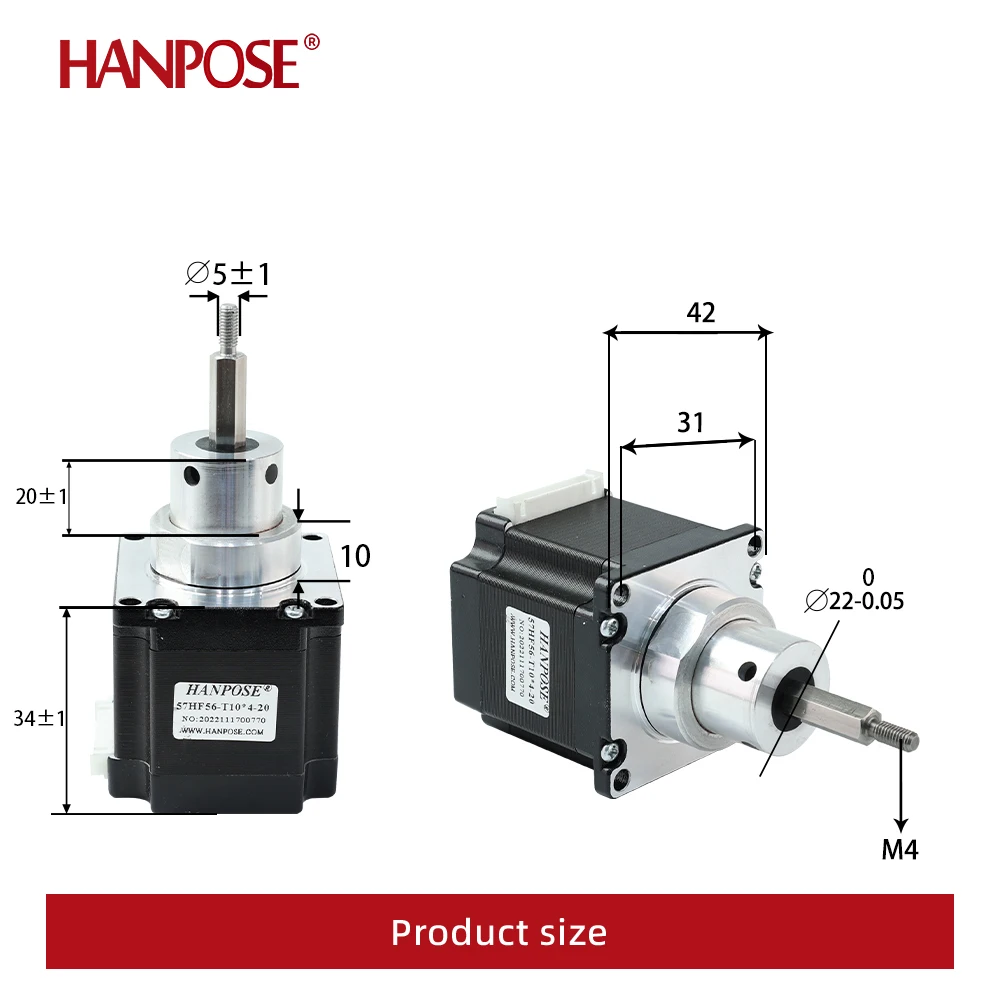

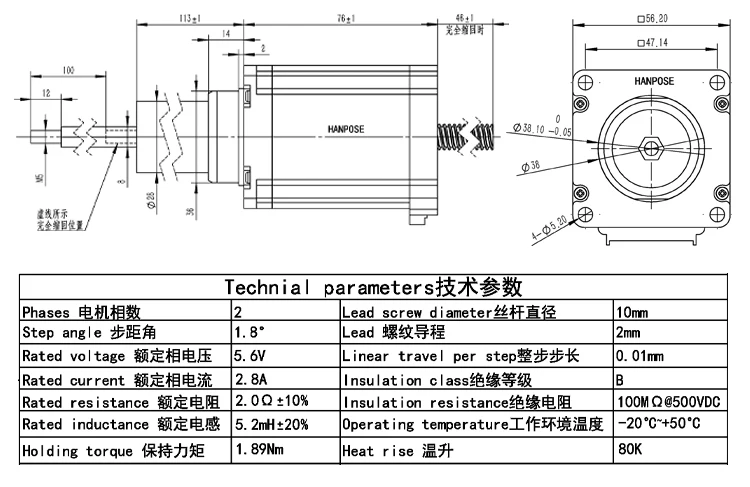

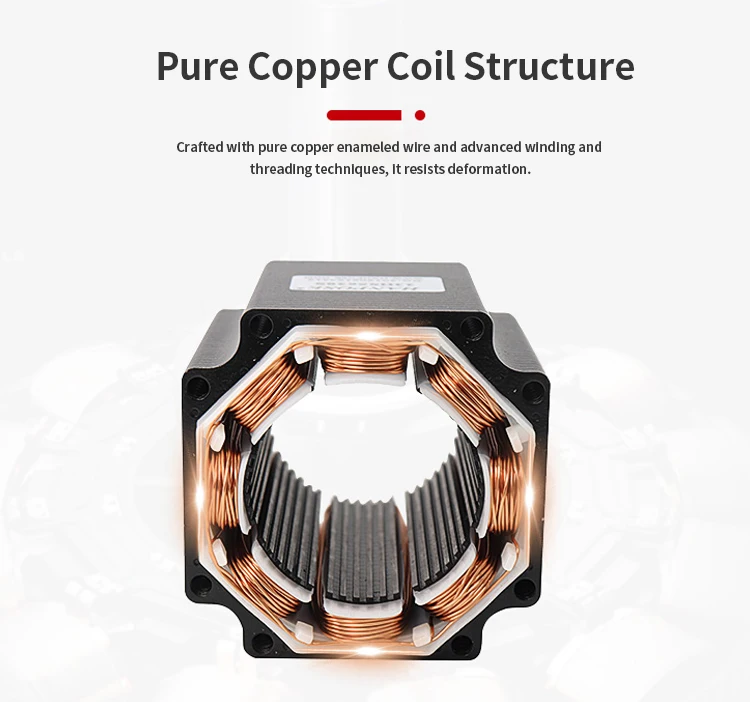

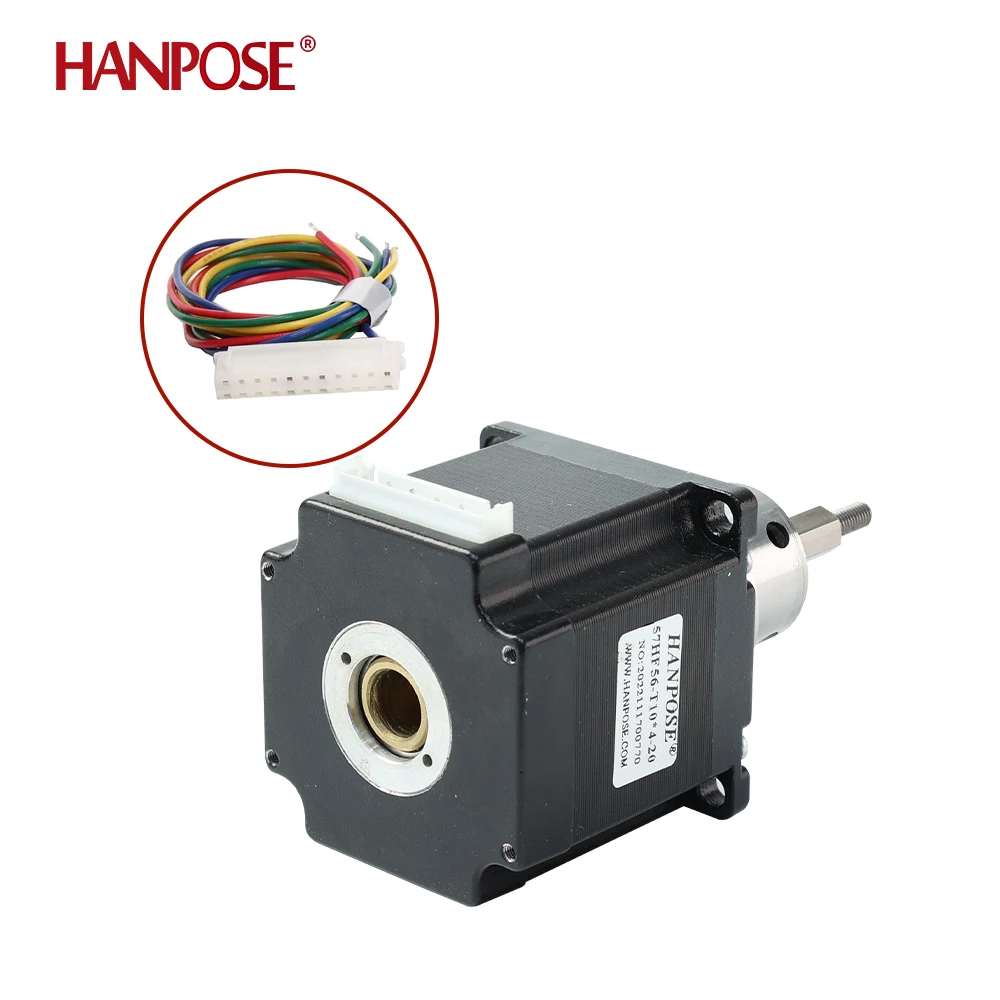

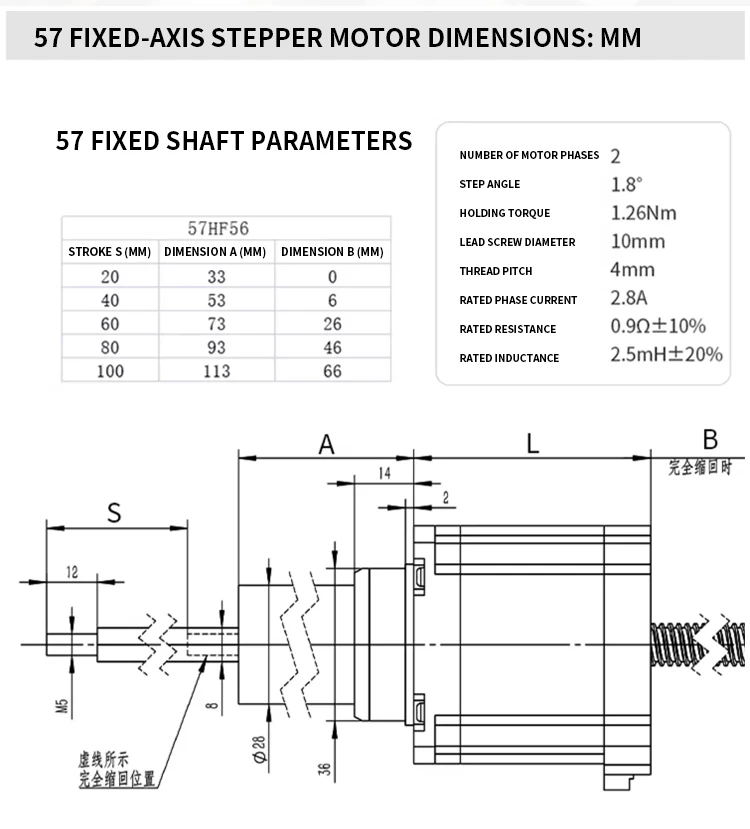

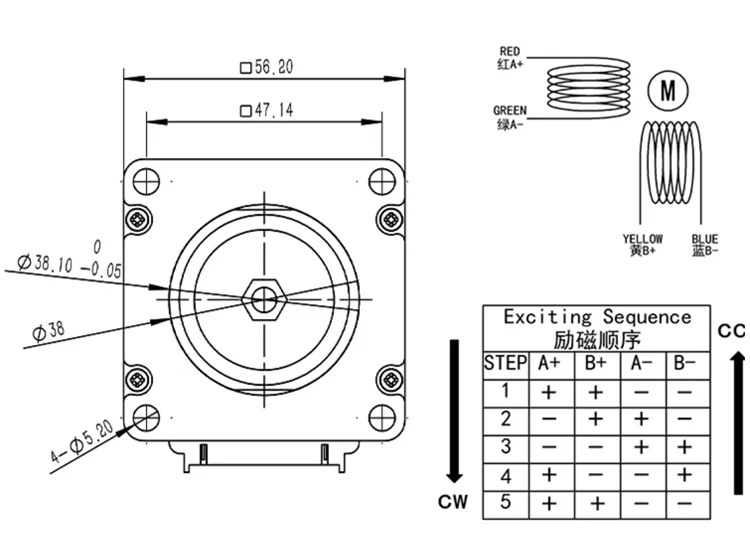

Details Images
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-2
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-3
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-4
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-5
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-6
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-7
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-8
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-9
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-10
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-11
Company Profile
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-12
Production flow
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-13
Equipment
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-14
Certifications
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-15
Exhibition
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-16
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-17
Product packaging
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-18
product hanpose nema 23 57 fixed axis screw stepper motor 57hf56 t104 20 56mm 28a 31v linear telescopic push rod micro stepper motor-19
