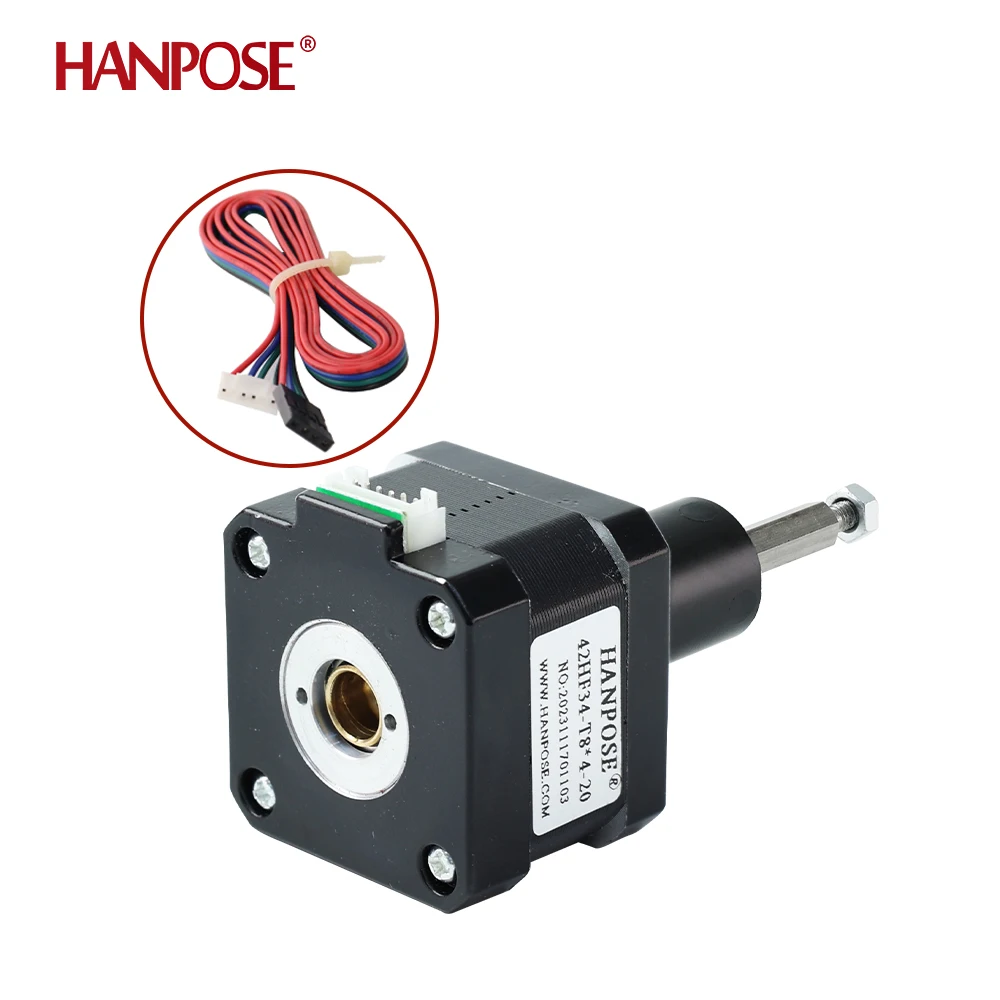

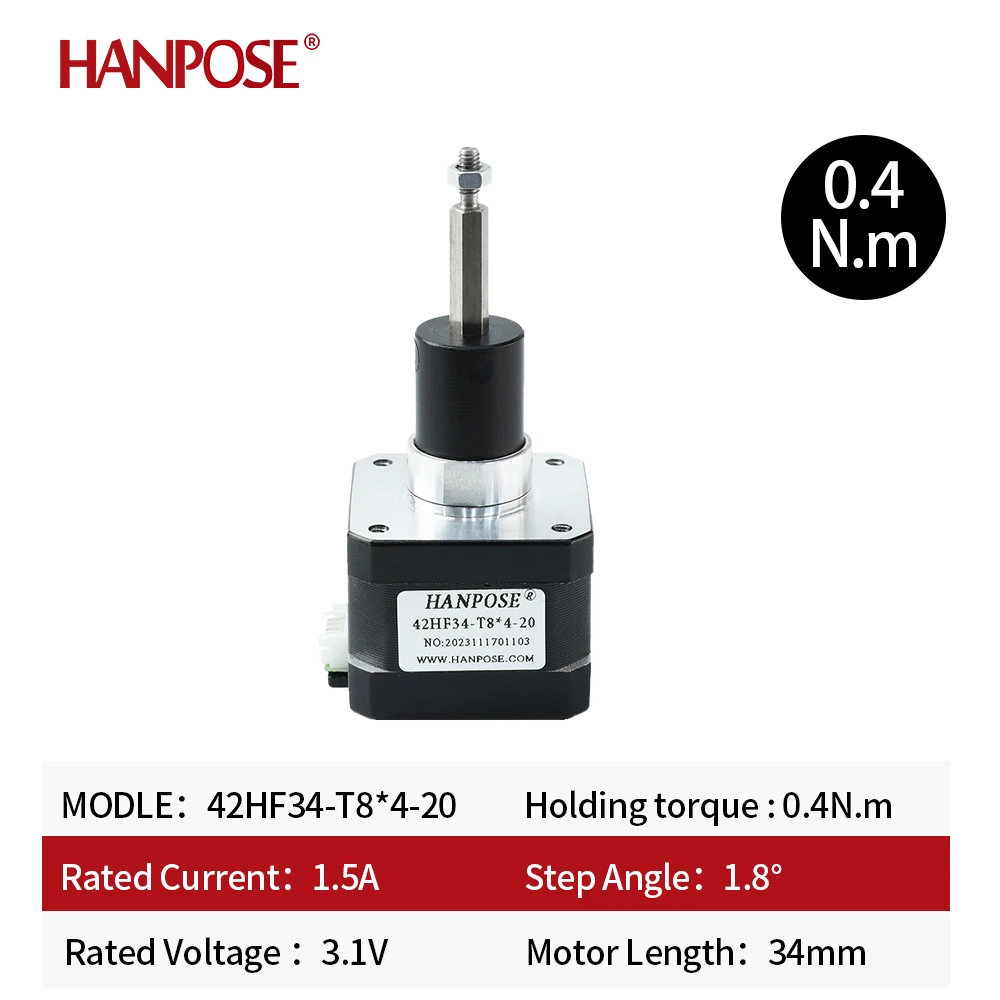

HANPOSE Nema17 42 Fixed Axis Screw Motor 42HF34-T8*4-20 0.4n. M 34mm 1.5a Miniature Electric Cylinder Stepper Motor

  • Overview
  • Recommended Products
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-1
Products Description
Model
42HF34-T8*4-20
Motor length
34mm
Step angle
1.8°
Holding torque : 0.4N.m
 0.4N.m
Rated Voltage
3.1V
Rated current
1.5A
Details Images
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-2
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-3
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-4
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-5
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-6
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-7
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-8
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-9
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-10
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-11
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-12
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-13
product hanpose nema17 42 fixed axis screw motor 42hf34 t84 20 04n m 34mm 15a miniature electric cylinder stepper motor-14
