HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver
HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver

HANPOSE Nema17 Planetary Reducer Closed Loop Gearbox 2.0A 0.4N.m 42EP40-PG 5.18-1 3.71 Reduction Ratio CL42 Stepper Motor Driver

Inquiry
  • Overview
  • Recommended Products
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-1
Products Description

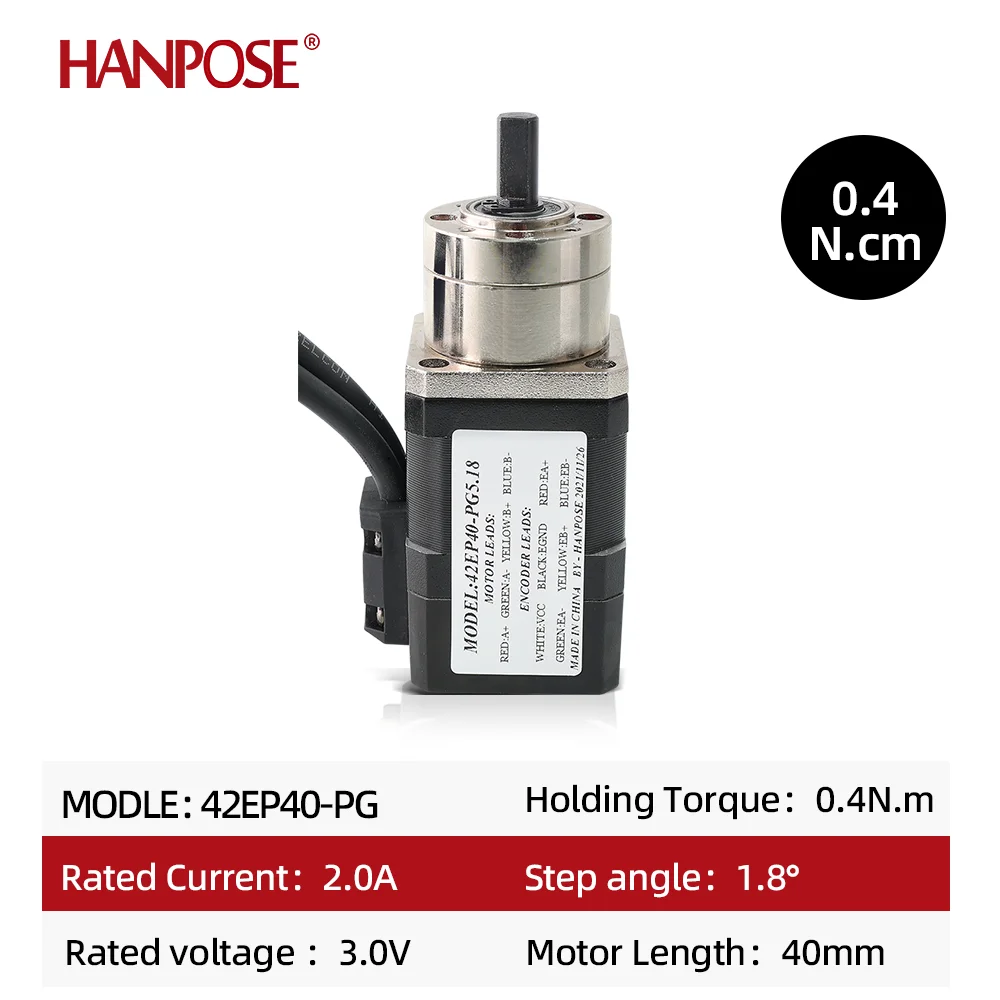

Model
42EP40-PG+CL42
Motor length
40MM
Step angle
1.8°
Torque detection
40N.CM
Motor weight
280g
Rated current
2.0A
Details Images
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-2
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-3
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-4
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-5
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-6
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-7
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-8
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-9
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-10
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-11
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-12
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-13
product hanpose nema17 planetary reducer closed loop gearbox 20a 04nm 42ep40 pg 518 1 371 reduction ratio cl42 stepper motor driver-14
