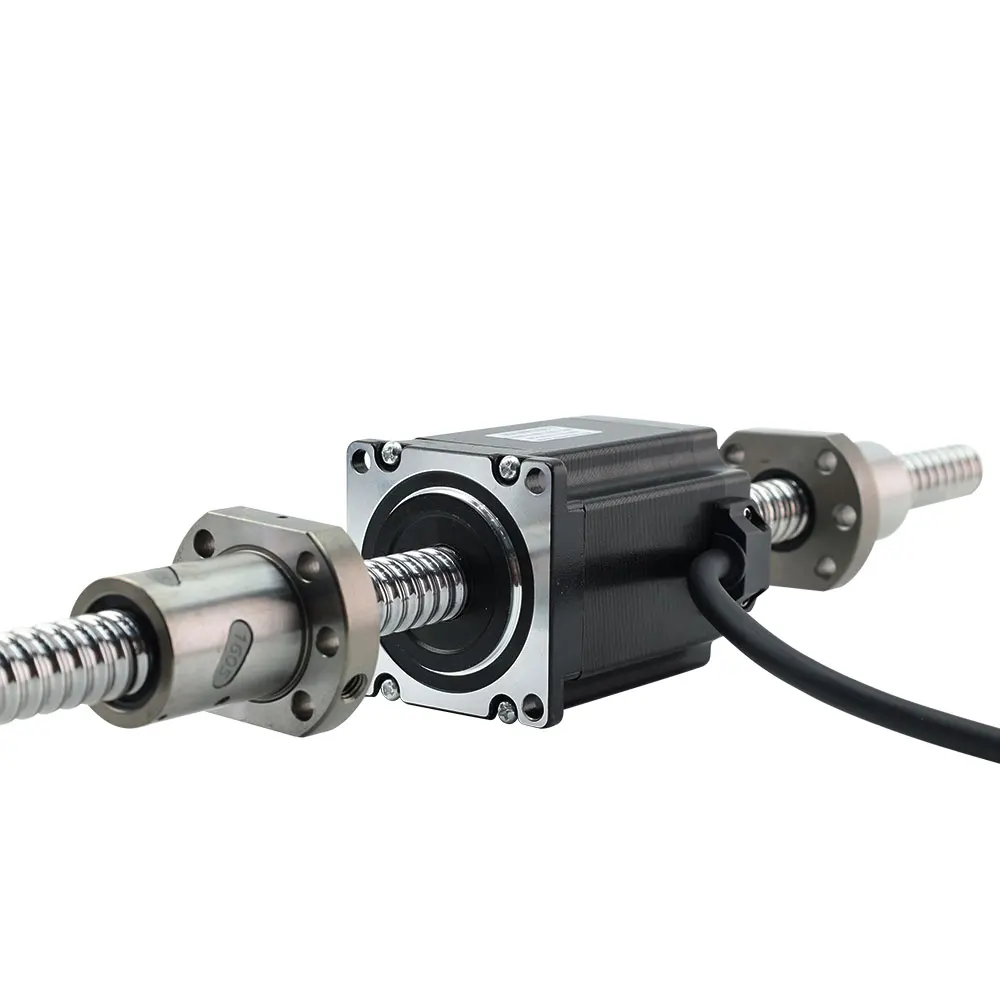

Nema 23 Ball Screw Motor 57X76mm 2.8A 189N.Cm 57HB76-RL1605 100mm Cnc 3D Printer Front and Back Teeth Double Ball Screw Motor

  • Overview
  • Recommended Products
product nema 23 ball screw motor 57x76mm 28a 189ncm 57hb76 rl1605 100mm cnc 3d printer front and back teeth double ball screw motor-1
Products Description

NEMA23 Stepper motor, a wide range of use, cost-effective!

Product Name
57HB76-RL1605
Size
57*57*76MM
Phase
2
Step Angle
1.8°
Shaft
SFU1204-ball screw"
Outlet way
"4" plug line
Color
 black
Details Images
product nema 23 ball screw motor 57x76mm 28a 189ncm 57hb76 rl1605 100mm cnc 3d printer front and back teeth double ball screw motor-2
product nema 23 ball screw motor 57x76mm 28a 189ncm 57hb76 rl1605 100mm cnc 3d printer front and back teeth double ball screw motor-3
product nema 23 ball screw motor 57x76mm 28a 189ncm 57hb76 rl1605 100mm cnc 3d printer front and back teeth double ball screw motor-4
product nema 23 ball screw motor 57x76mm 28a 189ncm 57hb76 rl1605 100mm cnc 3d printer front and back teeth double ball screw motor-5
product nema 23 ball screw motor 57x76mm 28a 189ncm 57hb76 rl1605 100mm cnc 3d printer front and back teeth double ball screw motor-6
product nema 23 ball screw motor 57x76mm 28a 189ncm 57hb76 rl1605 100mm cnc 3d printer front and back teeth double ball screw motor-7
